S3700 Primary Color Label and Printer Kit with Software

Name: S3700 Primary Color Label and Printer Kit with Software
Brand: Brady®
SKU: S3700-KIT-COLOR
Price: 5869.00 CAD
Availability: InStock

$5,869.00 (CAD) / kit

Overview Specifications Support Recommendations

This kit saves you up to 15% versus purchasing the components separately!

S3700 Primary Color Label and Printer Kit with Software

The Brady S3700 printer on a workbench in a boiler room with a variety of different colored pipe markers next to it.

A person in an industrial facility with multiple electrical panels applying an arc flash label in the background with the S3700 printer on a workbench in the foreground.

Close-up of a yellow arrow label on a machine that reads “Normal Set Point 185 degrees F, 240 psi."

Close-up of a label that reads “Danger Pinch Point" on a stainless steel surface.

Product Highlights

Print Resolution:

300 dpi
Color Printing Capability:

Multi-Color
Maximum Labels per Day:

600
Maximum Label/Tape Width:

4 in
Print Technology:

Thermal Transfer
Device Connectivity:

Mobile device connected, PC connected, Stand-alone
Cut Options Available:

Cut at the end of print jobs, Cut between labels
Software Package:

Safety & Facility ID

S3700 Primary Color Label and Printer Kit with Software Add To Compare In Compare

$5,869.00 (CAD) / kit

Part Number:

S3700-KIT-COLOR

S3700 Brochure

Request a demo - samples available as part of demo

S3700 Labels

S3700 Ribbons

Overview

Get all the colors and capabilities you need in one convenient kit to create safety labels, Lean visuals, lockout tags, work-in-process labels and more that truly pop.

Printer optimized for 1-, 2- or 4-color panel ribbons for multicolor made easy – no calibrating, no threading, no waste (single-color ribbon only in kit)
Create shapes, arrows, letters and more with the built-in XY plotter cutter that slices straight lines, smoother curves and tighter connection points
Get your print jobs done right in less time with 20-second ribbon and material changeovers plus up to 5-in.-per-second print speed
Empower any user to print how they choose with time-saving onboard templates, intuitive PC labeling software and a mobile app
Simply tap, print, go with preprogrammed onboard label templates plus 600 barcodes and symbols
Durable, low-shrink All Weather Permanent Adhesive Vinyl Label Tape with ultra-aggressive adhesive is ideal for just about any industrial surface
Waste less, print more with print ribbons that last up to 60% longer by operating independently of label roll
Kit includes the following labels and ribbons: (1) B30C-4000-595-WT, (1) B30C-4000-595-BL, (1) B30C-4000-595-GN, (1) B30C-4000-595-RD, (1) B30C-4000-595-YL, (1) B30-R10000, (1) B30-R10000-WT

S3700 Sign and Label Printer Overview Video

Seamlessly design, view and print labels right from your phone.

The S3700 Printer with Bluetooth, paired with Express Labels mobile app, provides a seamless on-demand experience for maximum on-site efficiency.

New Features in Express Labels - BradyVoice Labeling Assistant and Image to Text

BradyVoice: Simply dictate text and the intuitive voice recognition, automatic sizing and quick formatting does the rest!
Image to Text: Use your phone's camera to instantly convert printed text, drawings, or handwritten notes into a label. No more manual data entry or retyping.

Get Started

A screenshot of Express Labels mobile on a phone

Explore the S3700's features

See what makes the S3700 a cut above, inside and out.

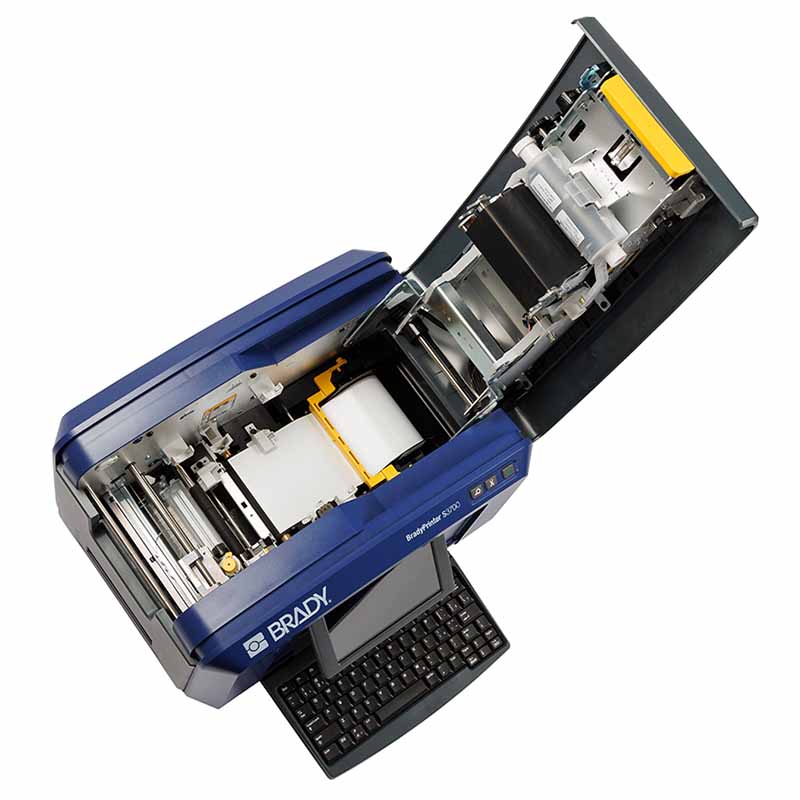

The S3700 Brady printer. The hatch is open, showing the components inside.

Auto setup — no calibrating, no threading, no expertise needed

Tap, print, go — onboard templates for streamlined productivity

Easy connect — PC software and a mobile app add flexibility

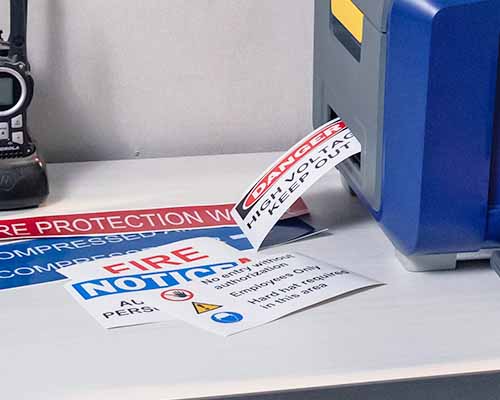

The S3700 printing various multicolored labels.

Multicolor brilliance

Put color at the core of your labeling for safety, Lean and work-in-process visuals that truly pop. Auto-adjusting multicolor panel ribbons last up to 60% longer and print color labels on a single cartridge.

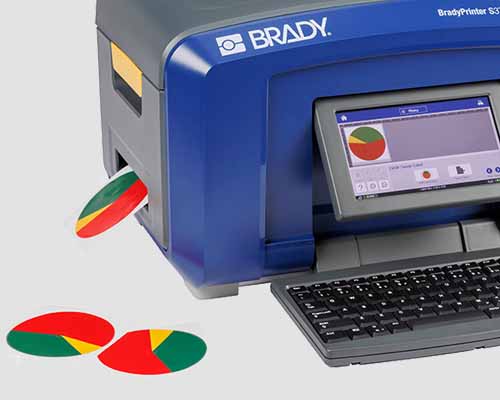

Circular-cut labels coming out of the S3700 printer.

Transformative shape cutting

Enjoy straighter lines, smoother curves and tighter connection points thanks to the precision XY plotter cutter. Plus, stack pipe markers and pack multiple shapes per label to minimize waste.

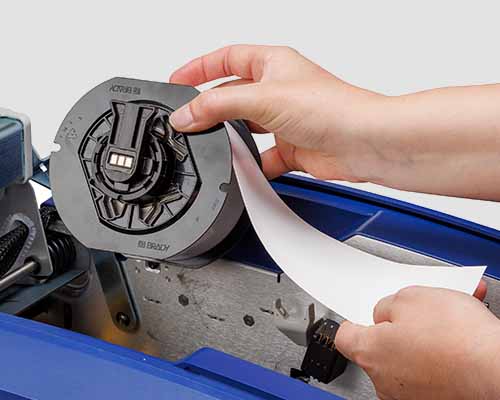

A person changing out label substrate on a S3700.

Faster print experience

Create and print faster than ever before with time-saving onboard templates, intuitive PC labeling software and a mobile app, plus 20-second material changeovers and 5 inches per second print speed.

Optimize your performance with the S3700 and Brady materials

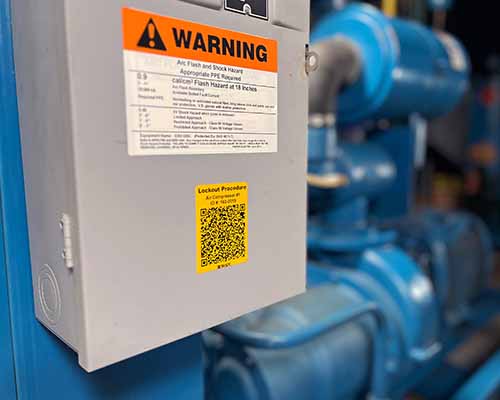

A breaker box inside a maufacturing facility. It has bright warning labels on it.

Safety and facility

Arc flash, GHS, OSHA/ANSI, fire, LOTO tags, panels, pipe marking, valves, hazards and instructions
Multicolor optimized for more impact and less hassle
Material durability up to 10 years

Lean manufacturing

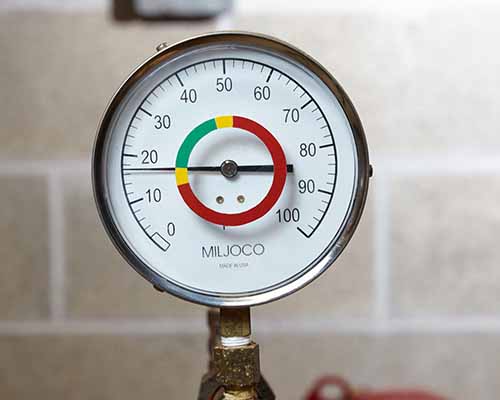

Gauges, equipment, calibration, 5S, racks, floor marking and parts bins
Built-in XY plotter cutter to slice any shape and letter flawlessly
Mobile app so you can take stock of your facility while the printer stays put

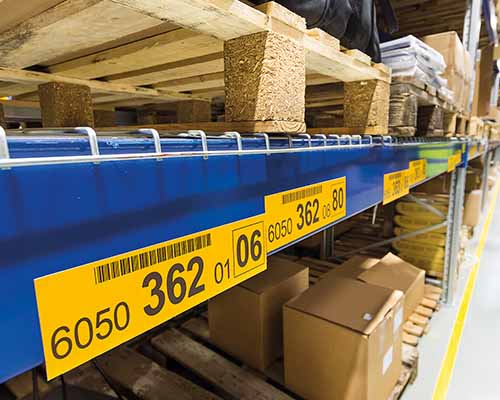

A row of neatly labeled bins in a warehouse.

Operations

Work-in-process, quality control, barcodes, area marking and serial numbers
Fast 5-in.-per-second print speed
600+ pre-programmed barcodes and symbols

Discover all applications the S3700 Printer and labels can solve

Hundreds of purpose-built materials for the applications you need

Discover some of the most popular label materials compatible with the S3700. The table below shows each material type and the applications where it performs best, making it simple to find the right solution for your project.

	Lockout Tagout	Lean / 5S	Safety ID	Operations	GHS / HazCom	Pipe Marking	Equipment ID	Electrical ID
All-Weather Vinyl	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Raised Panel Labels	Yes	No	No	No	No	No	No	Yes
Printable Tags	Yes	Yes	No	No	No	No	No	No
Repositionable Multi-Purpose Vinyl	No	Yes	No	Yes	No	No	No	No
Magnetic Polyester	No	Yes	No	Yes	No	No	No	No
ToughStripe Printable Floor Marking Tape	No	Yes	No	No	No	No	No	No
Preprinted Header Labels	No	No	Yes	No	No	No	No	Yes
Retro Reflective All-Weather	No	No	Yes	No	No	No	Yes	No
BradyGlo High Intensity Glow-In The Dark	No	No	Yes	No	No	No	Yes	No
Washdown Resistant	No	No	Yes	No	No	No	Yes	No
Washdown Resistant & Metal Detectable	No	No	Yes	No	No	No	Yes	No
Cold Temperature Application Polyester	No	No	Yes	No	No	No	Yes	No
Pre-Printed GHS CLP Chemical Labels	No	No	No	No	Yes	No	No	No
Low-Halide Multi-Purpose Polyester	No	No	No	No	No	Yes	No	No

View all S3700 material options

Request a Sample

Brady Software Development Kit (SDK)

Your data. Your software. Brady printers. Integrate the Brady SDK into your current app- or web-based software for a seamless way to get label data to a Brady printer.

Learn more and see how others use it

Specifications

Key Characteristics


Key Characteristics	Product Number	176868
	UPC	888434627426
	UOM	Kit
	Trade Name	BradyPrinter S3700
	Brand Name	Brady®

Dimensions


Dimensions	Dimensions	11 in H x 19 in W x 14.25 in D
	Height	11 in
	Width	19 in
	Depth	14.25 in
	Display Size	6.11 x 3.42 in
	Weight	36.9 lb

Material Characteristics


Material Characteristics	Colour	Blue, Gray

Product Features


Product Features	Application	Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Warehouse Marking
	Shipped With Battery	No
	Built-In Label Wizards	Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS
	Cut Options Available	Cut at the end of print jobs, Cut between labels
	Cutter Type	XY Cutter and Auto Cutter
	Device Connectivity	Mobile device connected, PC connected, Stand-alone
	Display Type	Color LCD Touch Screen
	Estimated Media Changeover Time	20 seconds
	Keyboard Type	QWERTZ
	Media Sensor Type	Notch
	Memory	512 MB
	Number of Symbols	664
	On Screen Indicators	Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
	Plug Type	US
	Power Supply Voltage	110 - 240 V
	Auto Shut-Off / Power Conserve	Yes
	Print Preview Feature?	Yes
	Special Characters Quantity	95
	Units	Inches, Millimeter, Points
	User Interface Type	Keyboard, Mobile device, PC, Touch Screen

Printing Specifications


Printing Specifications	Automatic Label Set Up	Yes
	Barcode Symbologies - 2D	PDF417, QR code
	Barcode Symbologies - Linear	Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A
	Calibration Required?	No
	Color Printing Capability	Multi-Color
	Font Sizes	4 - 600 pt
	Font Styles	Arial, Arial 65, Courier New, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana
	Maximum Labels per Day	600
	Maximum Label/Tape Width	4 in
	Minimum Label Length	0.5 in
	Maximum Print Speed	5 in/s
	Maximum Printed Label Length	8.3 ft
	Print Resolution	300 dpi
	Print Technology	Thermal Transfer
	Media Sensor Adjustment	Automatic Adjustment

Compatibility


Compatibility	Compatible Media	B30-, B30C-, B30EP-
	Label Material Types	Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth
	Materials Supported	Continuous, Die-cut
	Custom Labels Available	No
	Maximum Print Width	4 in
	Software Compatibility	Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use
	Languages Available	Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese

What's Included


What's Included	Software Package	Safety & Facility ID
	Includes	(1) 4" Continuous Blue Vinyl Label (B30C-4000-595-BL), (1) 4" Continuous Green Vinyl Label (B30C-4000-595-GN), (1) 4" Continuous Red Vinyl Label (B30C-4000-595-RD), (1) 4" Continuous White Vinyl Label (B30C-4000-595-WT), (1) 4" Continuous Yellow Vinyl Label (B30C-4000-595-YL), (1) Black Ribbon Cartridge (B30-R10000), (1) Brady Workstation Design & Print Essentials Insert - Safety and Facility ID Suite, (1) Cleaning Kit (PCK-6), (1) Mouse, (1) Power Cord, (1) Quick Start Guide, (1) S3700 Safety and Facility Printer (S3700-WB), (1) USB Cord, (1) USB Flash Drive, (1) White Ribbon Cartridge (B30-R10000-WT)
	Model	S3700
	Warranty	5 Years

Compliance


Compliance	California Prop 65	No warning label required
	REACH SVHC Status	Part contains an SVHC
	REACH Candidate List Date	25 June 2025
	Country of Origin	Malaysia
	ECCN (Export Commodity Control Number)	EAR99
	HTS Code (Harmonized Tariff Schedule)	8443.32.1050
	RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
	UNSPSC	45101519
