NFPA 70E 2015 Changes

2 min read

The NFPA 70E gets updated every three years. See what was new in 2015.

Other NFPA 70E Updates: 2024 | 2021 | 2018

Overview

The 2015 update includes some of the following changes:

  • Revision to arc flash warning label content
  • Elimination of PPE Hazard Category "0"
  • Elimination of the Prohibited Approach Boundary
  • Additional boundary requirements
  • Revisions to selecting appropriate personal protective equipment (PPE)
  • Updated training and retraining requirements

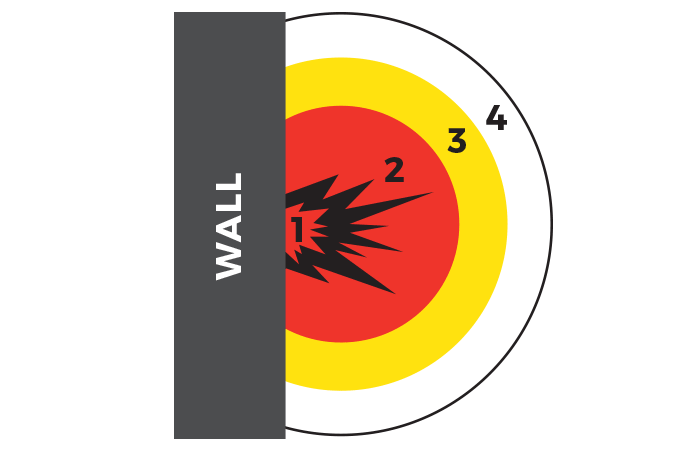

Diagram labeling the four arc flash boundary types.

Arc Flash Boundaries

  1. Exposed Conductor, or Circuit
  2. Restricted Approach Boundary (increased likelihood of electric shock)
  3. Limited Approach Boundary (shock hazard exists)
  4. Arc Flash Boundary (distance where up to 2nd degree burns are likely to occur - it could be 1 inch to 20 feet and greater of less than the other boundaries, depending on incident energy)

Changes to Boundary Requirements

  • "Prohibited Approach Boundary" removed
  • Conductive articles of jewelry and clothing must be removed
  • Working space shall not be used for storage
  • Barricades shall not be places closer than the flash boundary when it is greater than the limited approach boundary
  • Insulated tools must be used when working inside the restricted approach boundary
Arc Flash Protection document updated.

Changes to "Hazard Risk" - Now Arc Flash PPE Category

Category "0" was removed because the new PPE table only specifies work within the Arc Flash Boundary. There are two methods to select the appropriate PPE.

1. Incident Energy Analysis

OR

2. PPE Tables Method [130.7(c)(15)(A)(b) or 130.7(C)(15)(B) and 130.7(C)(16)]

If the arc flash PPE cannot be determined by the tables, an arc flash calculation must be performed.

The guide to performing arc flash hazard calculations is driven by IEEE Standard 1584-2002. Learn more here.

Changes to Arc Flash and NFPA 70E Training Requirements

  • Annual emergency response refresher training, verification and documentation required
  • Retraining required every three years
Changes to Arc Flash labels icon

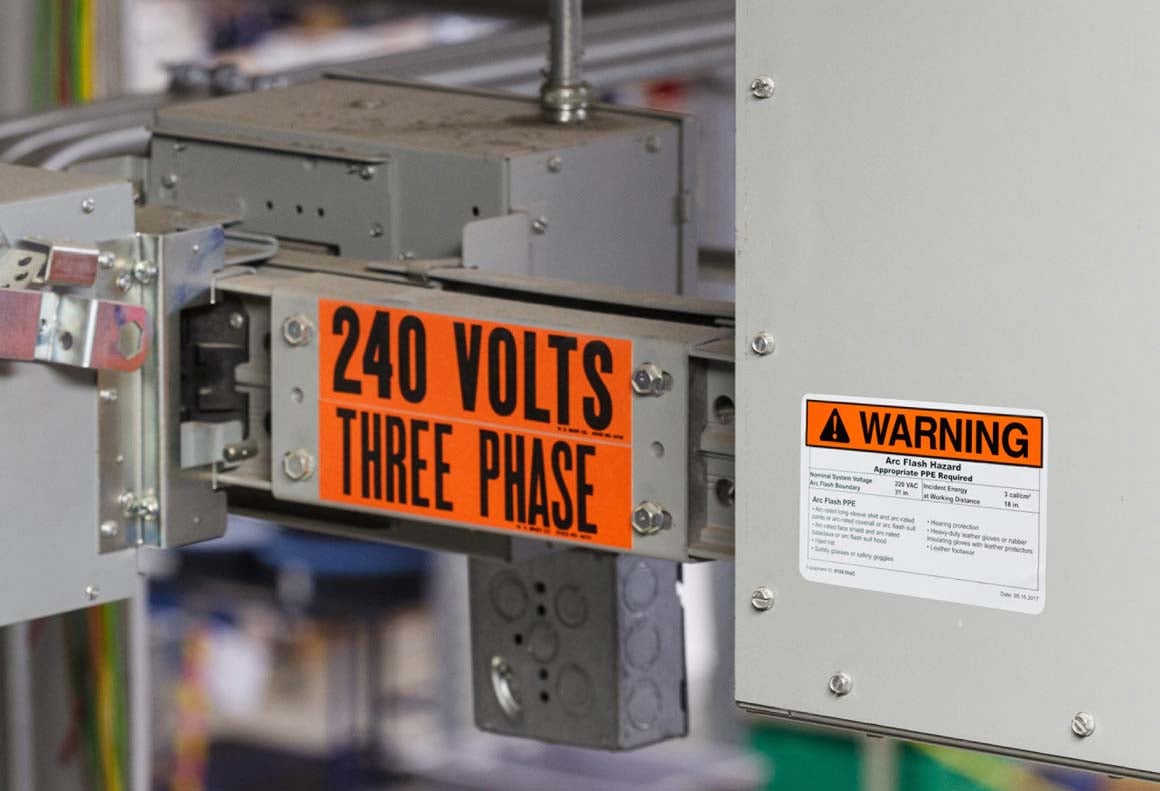

Changes to Arc Flash Labels

Owners of electrical equipment subject to arc flash hazards are responsible for the documentation, installation and maintenance of the field-marked labels. It must contain the following information:

  • Nominal system voltage
  • Arc flash boundary
  • Site specific level of PPE, minimum arc rating of clothing, available incident energy and distance OR the arc flash PPE category
