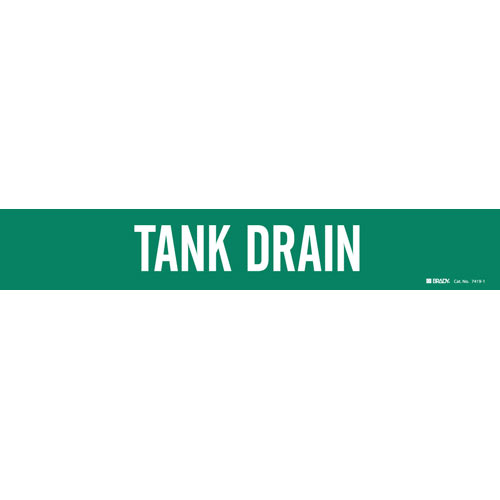

TANK DRAIN Pipe Marker
Click or press enter to play
Customize product to see more images
Note:
Some combinations may not be possible
Some product choices don't work together. If you choose something that conflicts, we'll reset your earlier selection.
from
$23.39
(CAD)
Description
Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Recommended to use Directional Flow Arrow Tape to indicate flow direction
Key Features
More key features may become available as you complete your product selections.
Specifications
More specifications may become available as you complete your product selections.
Documentation, Guides & Videos - configure to see more
More documentation, guides & videos may become available as you complete your product selections.
Product Overviews & Specs
Compliance Documents
You'll find additional compliance information in this page's product specifications and can use this form to request product certifications.
Customers Also Bought
-
CONDENSATE RETURN Pipe Marker
Multiple Options Available
from $23.39 -
BOILER FEED Pipe Marker
Multiple Options Available
from $23.39 -
STEAM Pipe Marker
Multiple Options Available
from $23.39 -
BOILER BLOW DOWN Pipe Marker
Multiple Options Available
from $23.39 -
BLOW DOWN Pipe Marker
Multiple Options Available
from $23.39 -
VENT Pipe Marker
Multiple Options Available
from $23.39 -
CONDENSATE DRAIN Pipe Marker
Multiple Options Available
from $23.39 -
PUMPED CONDENSATE Pipe Marker
Multiple Options Available
from $23.39 -
CONDENSER WATER RETURN Polyester Pipe Markers
Multiple Options Available
from $25.89
Pipe color code chart: ANSI/ASME A13.1
| Label Color | Text Color | Example | Pipe Contents |
|---|---|---|---|
| Red | White |
Red
|
Firefighting |
| Orange | Black |
Orange
|
Toxic or corrosive |
| Yellow | Black |
Yellow
|
Flammable, combustible or oxidizing |
| Gray | Black |
Gray
|
Steam; or steam condensate, boiler feedwater, or other hot water |
| Green | White |
Green
|
Potable, cooling, or other cold or tepid water |
| Blue | White |
Blue
|
Compressed air |
| Purple | White |
Purple
|
To be defined by the user |
| White | Black |
White
|
To be defined by the user |
| Brown | White |
Brown
|
To be defined by the user |
| Black | White |
Black
|
To be defined by the user |
Pipe marker visibility and size requirements
| Outside Diameter of Pipe or Covering | Length of Color Field | Letter Height |
|---|---|---|
| 0.7 in-1.3 in (18-33 mm) | 8 in (203 mm) | 0.5 in (13 mm) |
| 1.4 in-2.4 in (34-61 mm) | 8 in (203 mm) | 0.7 in (19 mm) |
| 2.5 in-6.7 in (62-170 mm) | 12 in (305 mm) | 1.3 in (32 mm) |
| 6.8 in-10 in (171-254 mm) | 24 in (610 mm) | 2.5 in (64 mm) |
| Over 10 in (Over 254 mm) | 32 in (813 mm) | 3.5 in (89 mm) |
What if your pipe or covering outside diameter is less than 0.7 inch or 18 mm?
In cases where it is difficult to label a pipe or covering due to size, we advise using durable and long-lasting energy source or valve tags in place of pipe labels or markers.
Read more about ANSI Pipe Labeling and Marking StandardsPipe Marking Guide
Brady pipe marker products meet a wide variety of applications to help you comply with ANSI/ASME A13.1
B-946
Self-Sticking Marker |
B-736
Self-Sticking Markers-To-Go |
B-300
Plenum Rated Duct and Pipe Markers |
B-915
Snap-On Marker |
B-915
Strap-On Marker |
B-689
Wrap-Around Marker |
B-681
High-Performance, High-Visibility Marker |
B-983
LiftMark Pipe Marker Carrier™ Standoff Kits |
|
|---|---|---|---|---|---|---|---|---|
| Marker Type | Premium self-adhesive marker for indoor or outdoor use in either individual markers or roll-form. |
Economical self-adhesive roll-form markers for smooth, clean, dry pipe surfaces. |
Premium self-adhesive individual marker and detachable arrow for use on HVAC plenums and ducts. |
Non-adhesive coiled pipe marker “snaps” around pipe giving 360-degree visibility while remaining easily removable |
Non-adhesive vinyl marker applied with nylon strapping (included). |
Wrap-around marker with an adhesive edge to secure marker. Repeating legend offers 360-degree visibility. |
Polyester marker applied to a fiberglass carrier. Markers fasten to pipe with included mounting clips and strapping (sold separately). |
Patented design lifts marker off pipe surface. Simply use nylon ties (sold separately) to attach standoffs to pipe and snap carrier in place. |
| Marker Material | Vinyl |
Plastic film |
Soft aluminum |
Vinyl |
Vinyl |
Polyester |
Fiberglass/plastic carrier with Polyester label |
Plastic standoff & PVC or fiberglass carrier |
| Installation Type | Adhesive |
Adhesive |
Adhesive |
Snap-on |
Nylon strapping |
Wrap-around with adhesive edge |
Mounting clips (included) & strapping (sold separately) |
Strapping (sold separately |
| Outer Diameter | From less than 0.75" to greater than 8" |
--- |
2" to 8" or larger |
0.75" to 6" |
6" to 15" |
0.2" to 7.875" |
8" or larger |
Three sizes supporting 2", 4" and 8" or larger |
| Service Temperature | -40°F to 180°F (-40°C to 82°C) |
-40°F to 212°F (-40°C to 100°C) |
-40°F to 180°F (-40°C to 82°C) |
-40°F to 180°F (-40°C to 82°C) |
-40°F to 180°F (-40°C to 82°C) |
-40°F to 248°F (-40°C to 120°C) |
-40°F to 230°F (-40°C to 110°C) |
-40°F to 248°F (-40°C to 120°C) |
| Outdoor Durability | 3 to 5 years |
2 to 3 years |
--- |
5 to 8 years |
5 to 8 years |
5 to 8 years |
5 to 8 years |
--- |
